Separators

GEA Separators

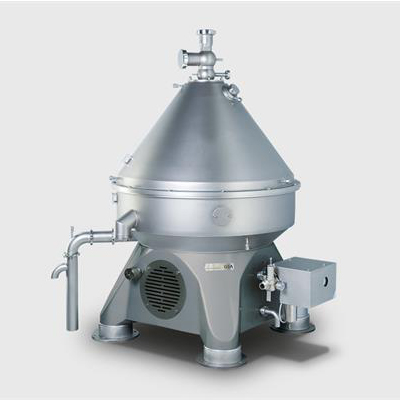

The fields of application range from separating processes in the chemical and pharmaceutical industries through oil and fat recovery to the production of dairy products, beer, wine, fruit and vegetable juices, as well as the processing of mineral oil and mineral oil products. Separators have disk or annular chamber bowls. They operate continuously in respect of the discharge of the liquid phases. In respect of solids discharge they work either discontinuously (e.g. discontinuous disk-type centrifuges which must be stopped so that the collected solids can be removed by hand), semi-continuously (self-desludging disk type centrifuges = self-cleaning separators) or fully continuously (nozzle-type separators).

GEA separators are available with different types of drives: gear drive, belt drive, direct drive and integrated direct drive. The later is the next genuine stage in evolution in the separator construction process and works without motor shaft, gear, belts, coupling and motor bearing. The smaller number of installed components not only reduce the energy losses – they also reduce the maintenance costs, thus enhancing the availability of the machine. The space requirement of the integrated direct drive is approximately one third lower than is the case with equivalent gear or flat belt machines.
